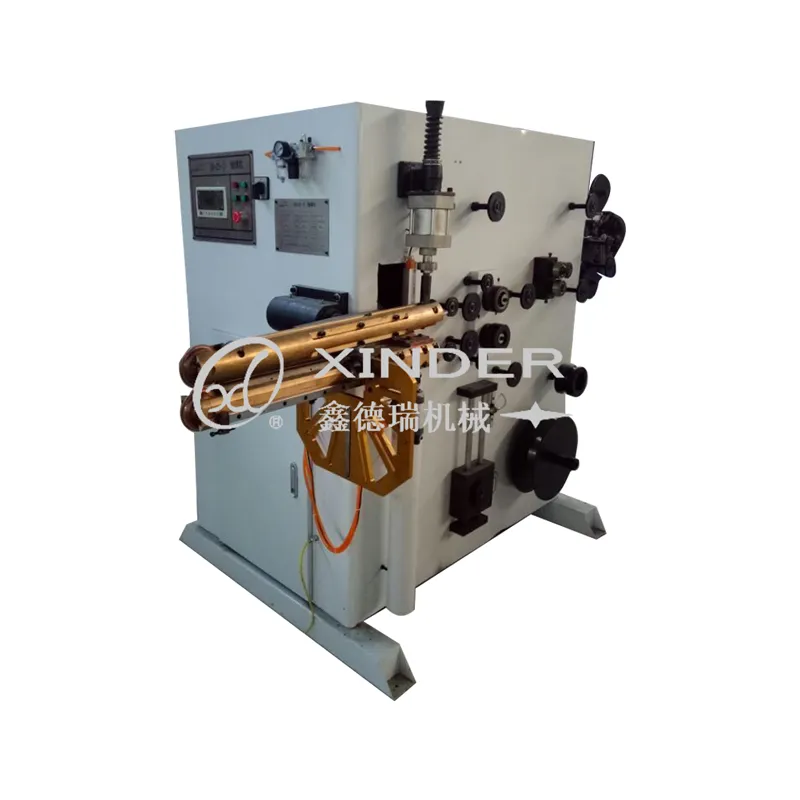

Small Can Seam Welding Machine

Power supply voltage: 3-phase 380V/50HZ;

Machine capacity: 25-150KVA

Welding materials: galvanized sheet, tinplate, stainless steel, base iron cold plate

Board thickness: 0.2-1mm

Welding diameter: 70-600mm (customized according to customer requirements)

Welding length: 50-1800mm (customized according to customer requirements)

Weld overlap amount: 3-4mm;

Production speed: 3-4 pieces per minute;

Compressed air pressure: 0.5MPa;

Compressed air consumption: 250L/min;

Cold water flow rate: 20L/min;

Use copper wire diameter: 1.65-2mm;

Equipment dimensions: 2000 * 1200 * 1800mm;

Equipment weight: approximately 1000KG;

Automatic control system PLC: Delta;
Pneumatic components: Yadeke;
Main reduction motor: Taiwan Yongkun;
Intermediate relay: Schneider;
Inverter brand: Delta;
Motor brand: Siemens;

1. This machine is a specialized seam welding equipment for two-piece metal cans and barrels, with dense and uniform welds, reliable sealing, firm welding, and high production efficiency.
2. This device uses copper wire as the middle electrode to prevent the electrode from being damaged by the galvanized layer, ensuring welding quality.
3. Welding Material: Used for seam welding of galvanized sheet, tinplate, stainless steel, and base iron cold plates, it can perform high-quality and high-efficiency welding on various shaped workpieces.
4. Can achieve: continuous seam welding, pulse seam welding, intermittent seam welding.
5. Widely used in welding products such as tinplate barrels, paint barrels, chemical barrels, military barrels, flower basket barrels, industrial heartburn pots, gift packaging boxes, car mufflers, vacuum cleaner casings, fire extinguisher boxes, stainless steel soup barrels, solar water tanks, and thin-walled container two-piece cans.

• 1
  Industrial Bucket


• 2
  Paint Bucket


• 3
  Kettle


• 4
  Vacuum Cleaner Casing



• 5
  Chemical Bucket


• 6
  Industrial Oil Drums


•
